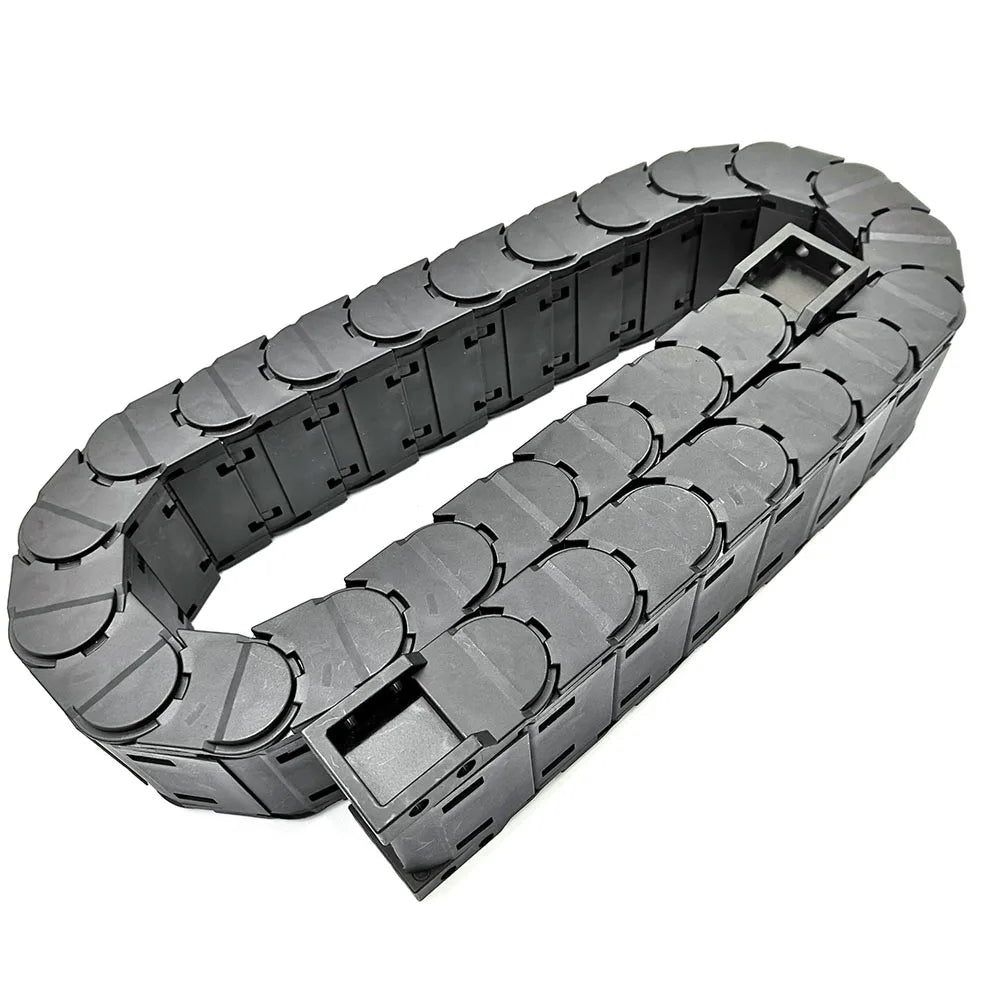

YCHEN 1 Meter D20-Serie, geräuscharmes Getriebe, Schleppkette, Drahtträgerkabel, Schleppleine, geschlossener Typ, beidseitig offen, heiße Verkäufe

YCHEN 1 Meter D20-Serie, geräuscharmes Getriebe, Schleppkette, Drahtträgerkabel, Schleppleine, geschlossener Typ, beidseitig offen, heiße Verkäufe

€142,95 EUR
€0,95 EUR €142,95 EUR
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet
Biegeradius
Innengröße

SPECIFICATIONS

Application scenario: CNC machine tools, welding machines, IROBOT, textile machines and other mechanical equipment.

Bending radius: R55/R75

Brand: YCHEN

Customized: Yes

Hochbetriebenes Chemikalienunternehmen: Keine

Length: 1 Meter

Markenname: NONE

Material: Kunststoff

Max outer diameter of cable: 17mm

Modellnummer: YCHEN-D20-F.K

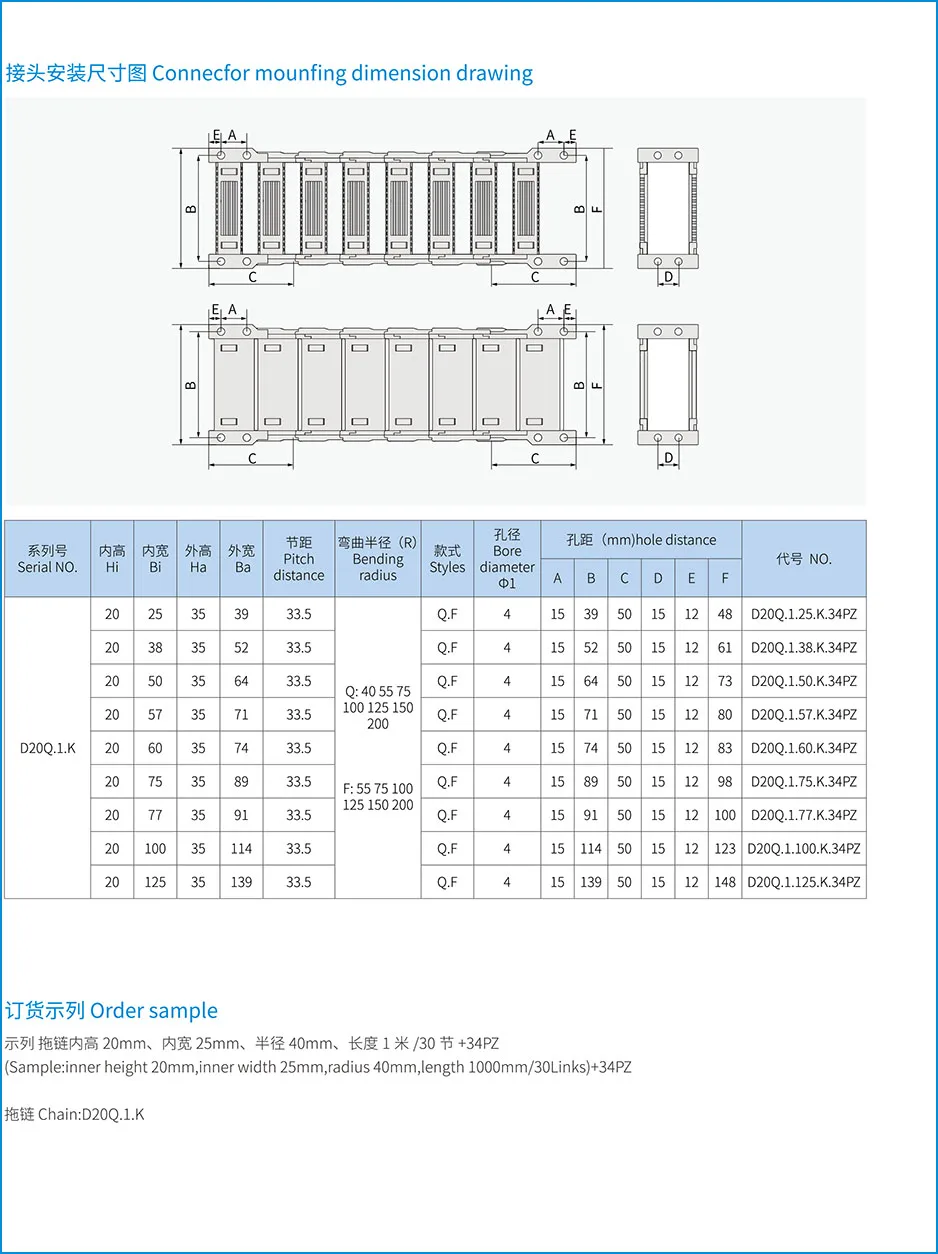

Optional specifications: 20X25 ; 20x38 ; 20x50 ; 20x57 ; 20x60 ; 20x75 ; 20x77 ; 20x100 ; 20x125

Per meter section: 30

Pitch: 33.5mm

Plastic: Stock

Standard oder Nichtstandard: Standard

Structural features: Open On Both Sides

Typ: Blätterkette

Type: Closed type

Ursprung: CN (Herkunft)

Zertifizierung: RoHS-Konformität

Zugfestigkeit: 1178kg/cm2

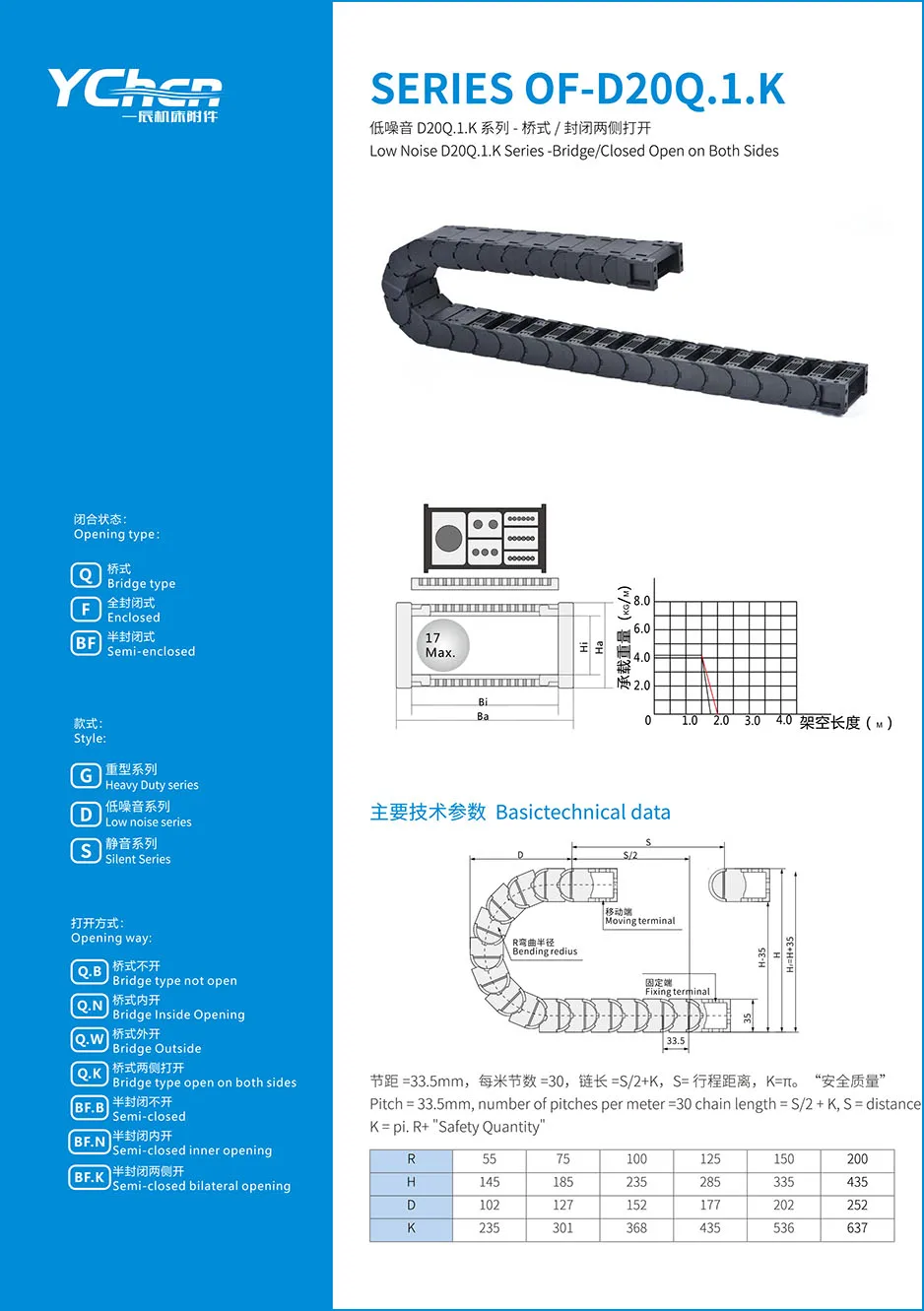

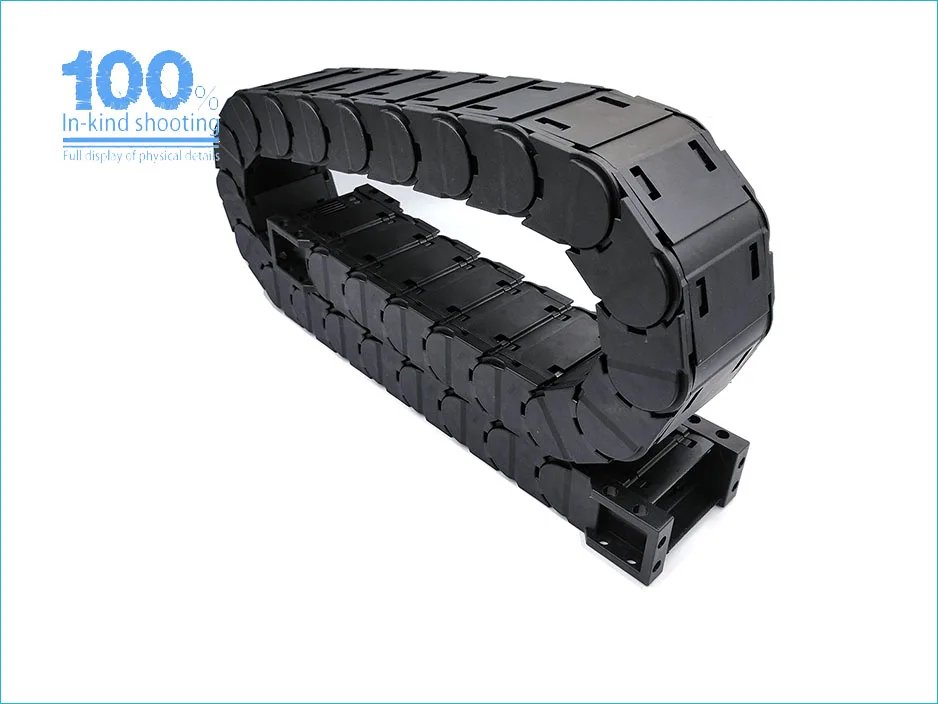

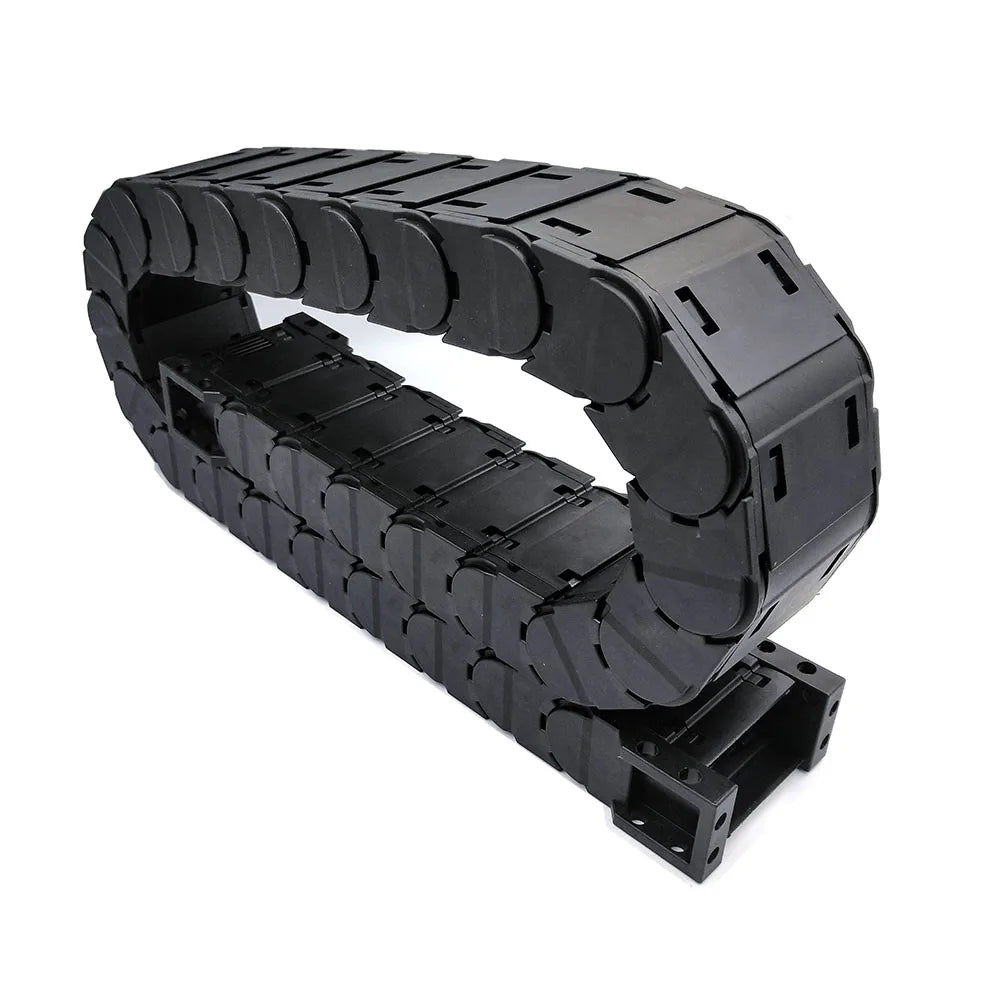

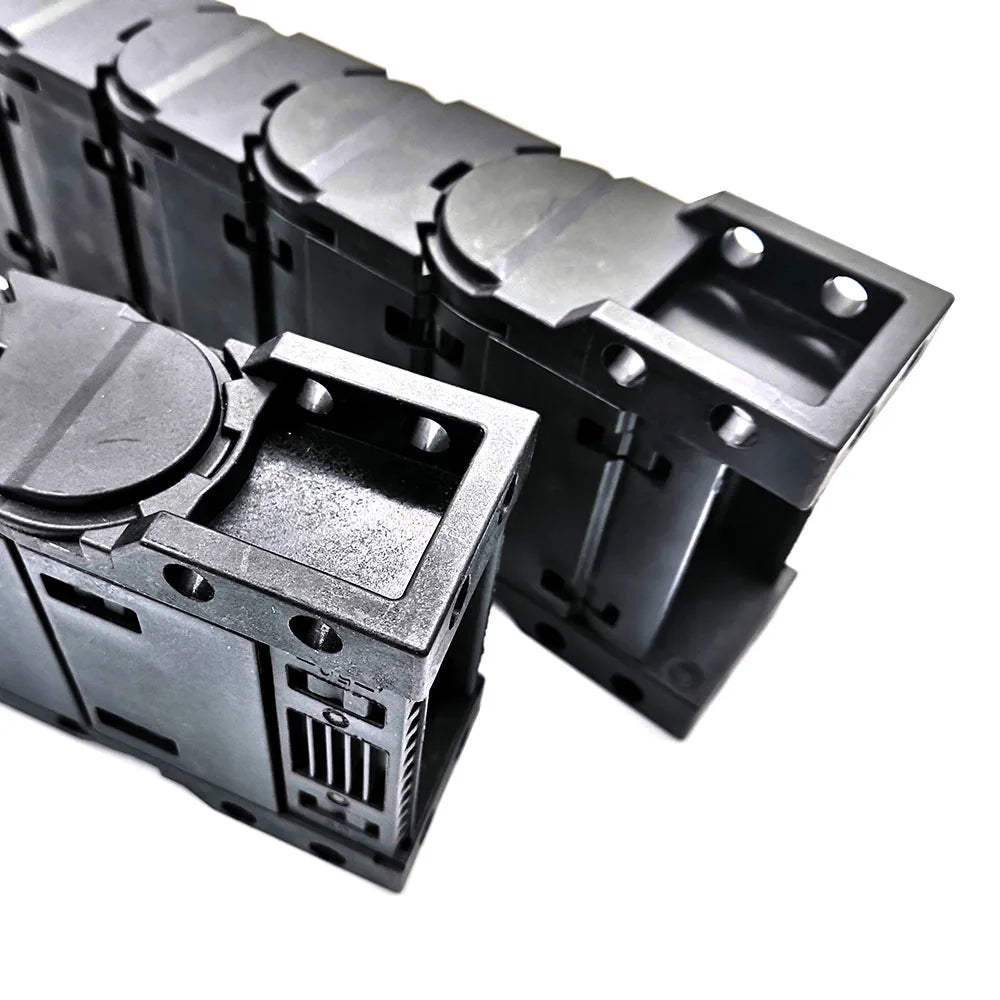

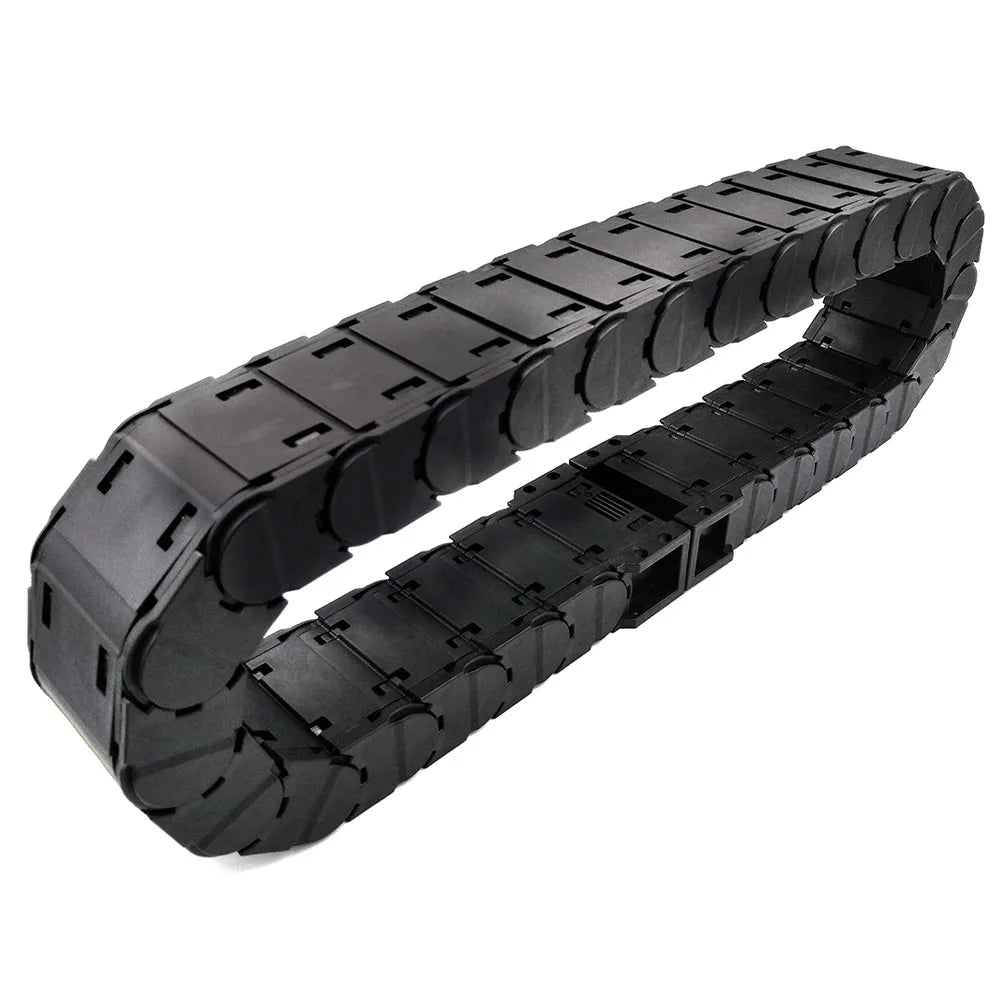

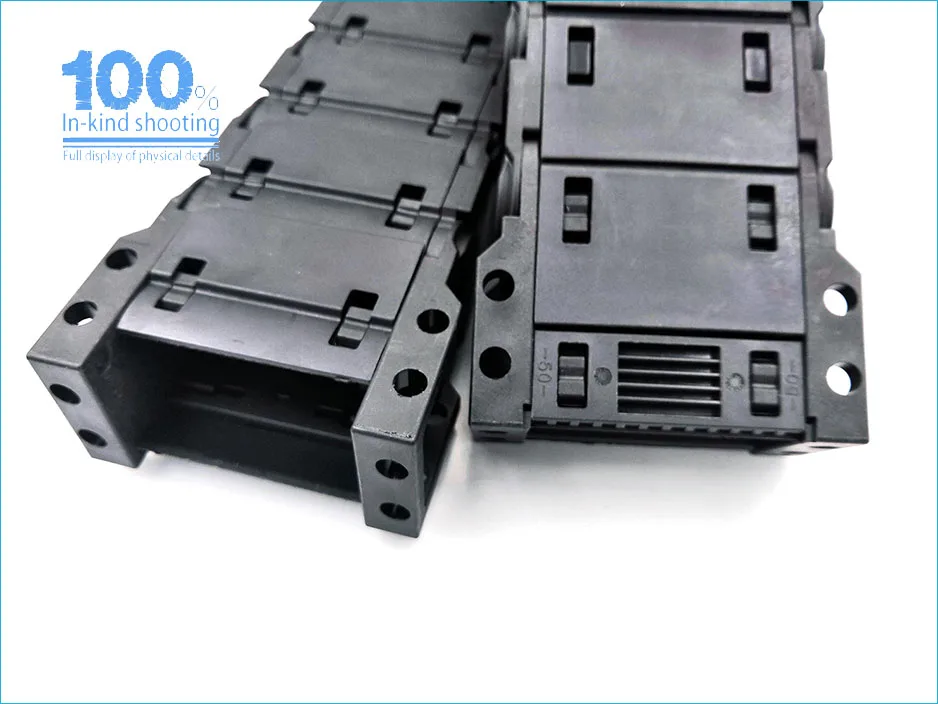

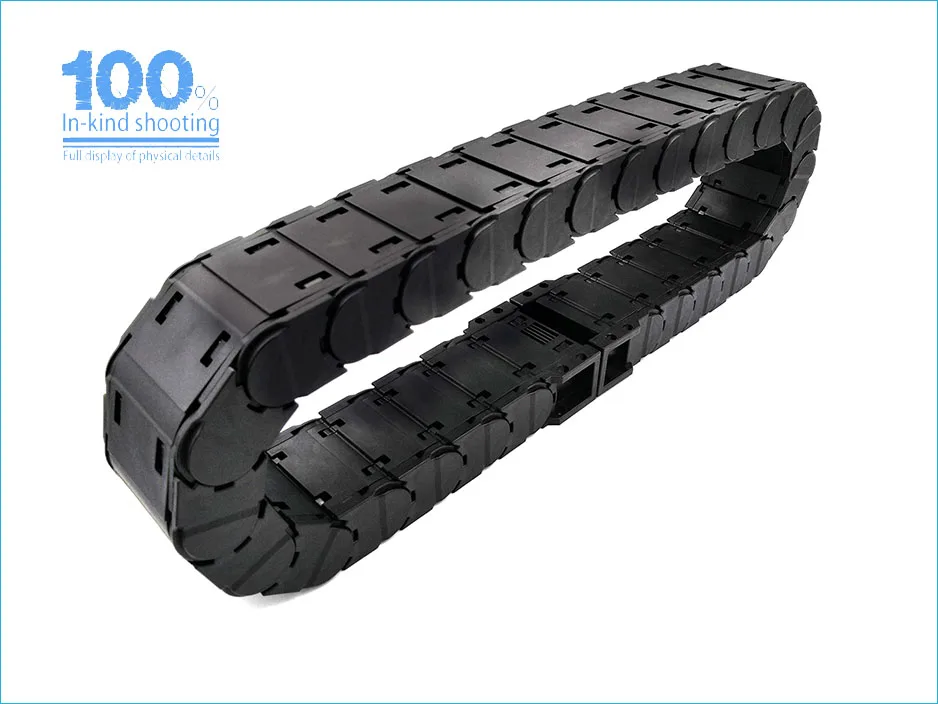

D20 Series Low Noise Drag Chain Wire Carrier Cable Towline Closed Type Open On Both Sides Transmission Parts


20X25 ; 20x38 ; 20x50 ; 20x57 ; 20x60 ; 20x75 ; 20x77 ; 20x100 ; 20x125


Made of 100% brand new materials and sold directly by the factory.

Welcome to cooperate, large quantity favorably.


Package Included:
1 Meter x Drag chain (The length include the end connectors)

Note:Some drag chains with radii are out of stock. If you need drag chains with other radii, please consult customer service before placing an order to confirm that payment can be made after placing the order.
The length of the chain can be customized, and Large quantity enjoy more discounts. Welcome to contact us.


Plastic towline structure:
1) The towline shape like tanks chain, composed by a large number of unit links between the rotating freely link.
2) Within the same series of towline high, outside the high, the same pitch, towline in width, bend radius R may have a different choice.
3) Unit chain around the chain plate and the upper and lower cover composition, towline can open each section, easy assembly and disassembly without threading, to the cable, tubing, pipe, pipe, etc. into the towline after opening the cover.
4) Also available separators, the chain separated by space as needed.

3) The towline has been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, doors and windows machinery, injection molding machines, robots, overweight transportation equipment, automated warehouses.
2) Each section towline can open, easy installation and maintenance. Exercise low noise, wear-resistant, high-speed movement.
1) Suitable for use in a reciprocating motion of the occasion, can be built-in cable, tubing, pipe,plumbing, etc. play traction and protection.


Towline selection of main parameters:
Within high: Select built-in cable, tubing, pipe, pipe, etc. As one of the most coarse reference height,plus at least 10% of the height of the space within the towline as high. If the overlap by overlapping the actual height as the reference height
Wide: Choose thicker some cables, tubing, pipe, water pipes, with its outer diameter and as the towline wide reference, and stay at least 10% of the width of the space.
Bending radii R: choose built-in cable, tubing, pipe, pipe, etc. The maximum bending radius as a reference value, and left more than 10 percent of the space.
Use towline length = R + 0.5R + stroke / 2
After bending towline total height = 2R + external high
Towline place principles:
Should leave 15% of the remaining space for built-in cable, tubing, etc., may move freely in the radial direction of the towline does not produce tension. Larger diameter difference between the wire should be laid separately, weight distribution, if necessary, be separated by the dividing sheet.
In the high-speed or high-frequency operation, to try to make the wires apart from each other on a level, do not make it mutually stacked more time in the cable, pipe, tubing, etc. is recommended touse separators.
