SPECIFICATIONS

Aperture: 6mm

Applicable maximum cable diamete: 40mm MAX.

Bending radius: R75/R100/R125/R150/R200/R300

Brand: JFLO

Color: Black

Hochbetriebenes Chemikalienunternehmen: Keine

Markenname: NONE

Material: Kunststoff,PA66

Modellnummer: HP-45-Q.S

Optional specifications: 45x50 ; 45x60 ; 45x75 ; 45x90 ; 45x100 ; 45x117 ; 45x125 ; 45x130 ; 45x150 ; 45x154 ; 45x175 ; 45x200 ; 45x250 ; 45x300

Pitch: 80mm

Products Status: Stock

Standard oder Nichtstandard: Standard

Structure: Bridge Type open both side

Typ: Blätterkette

Ursprung: CN (Herkunft)

Zertifizierung: RoHS-Konformität

Zugfestigkeit: 1178kg/cm2

is_customized: Yes

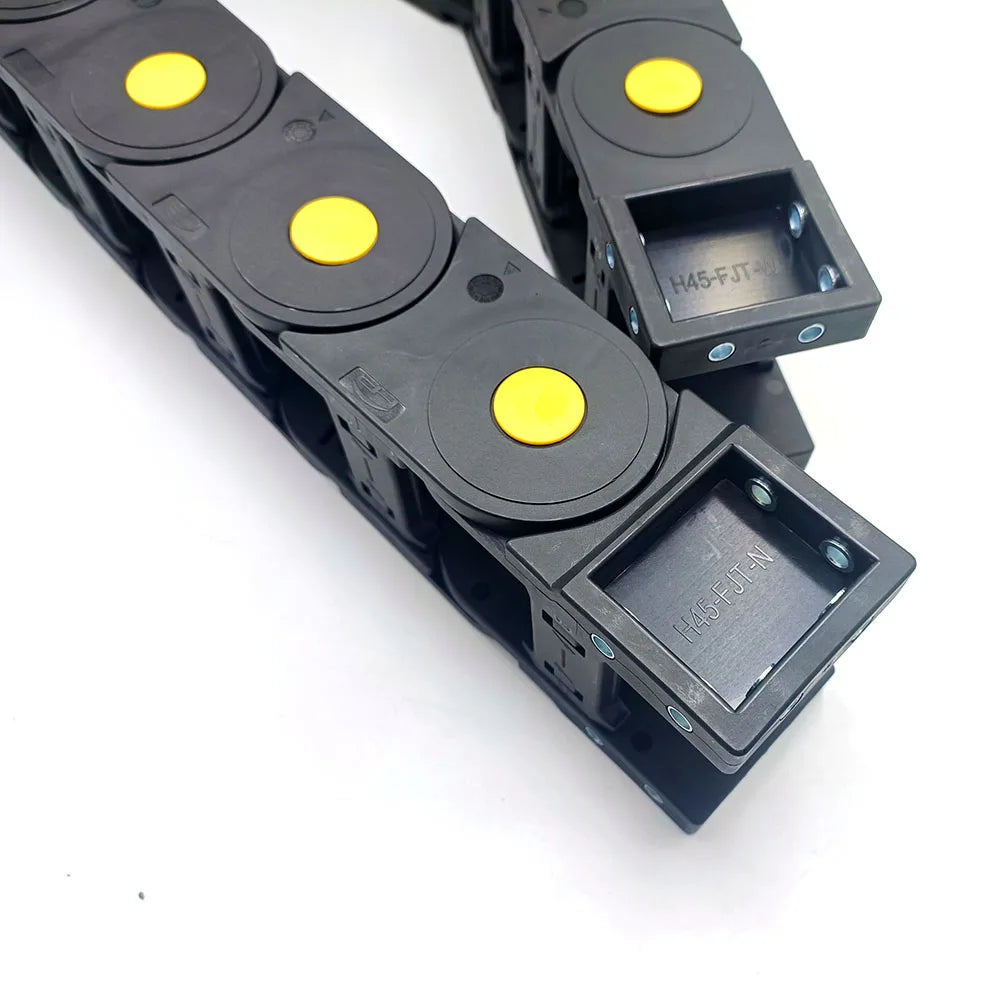

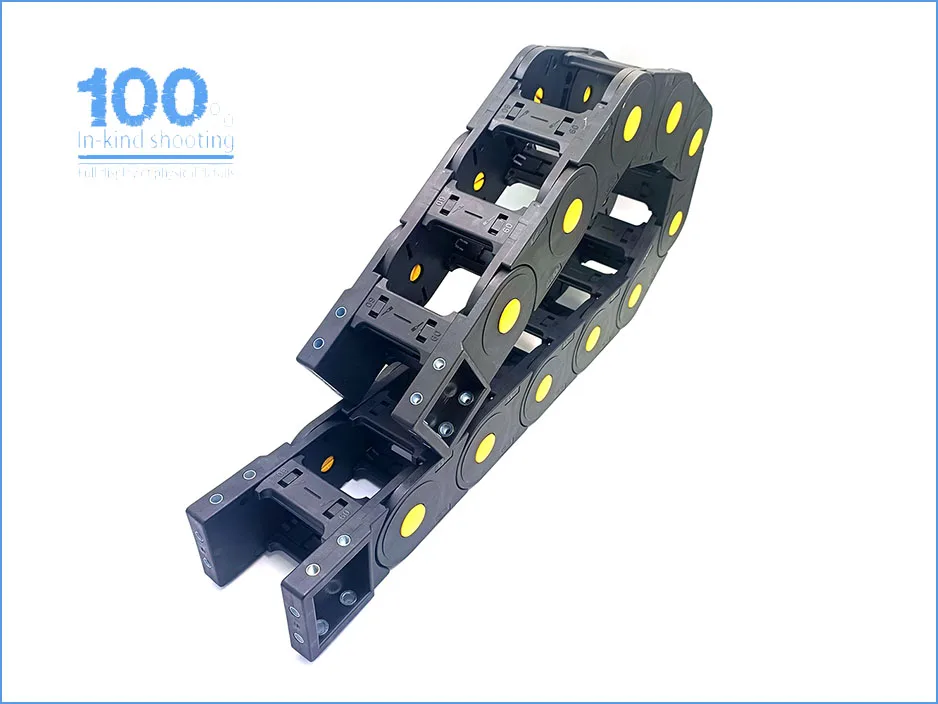

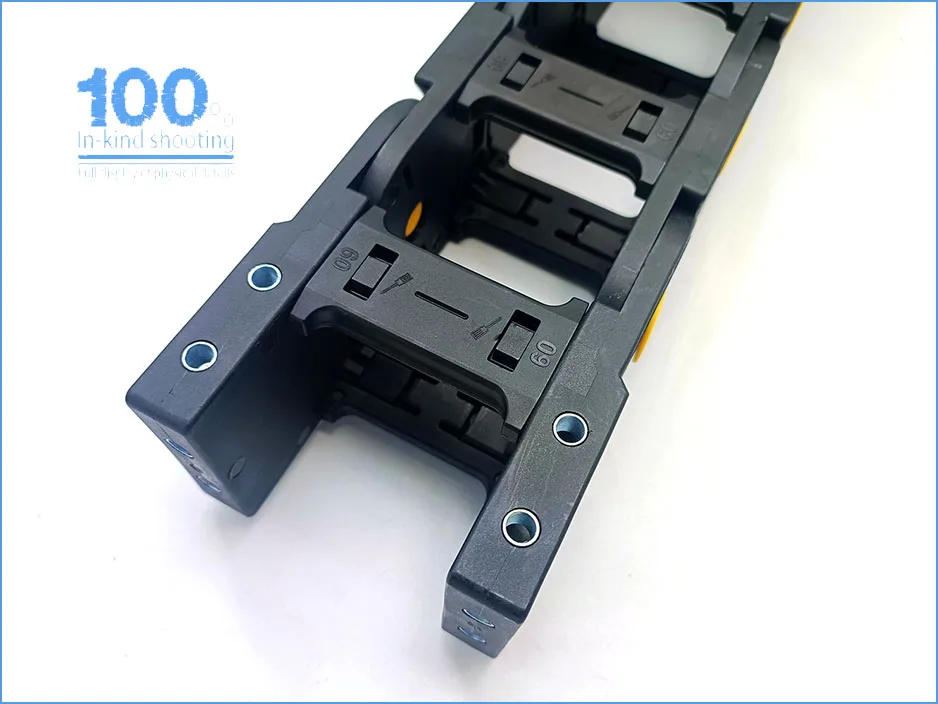

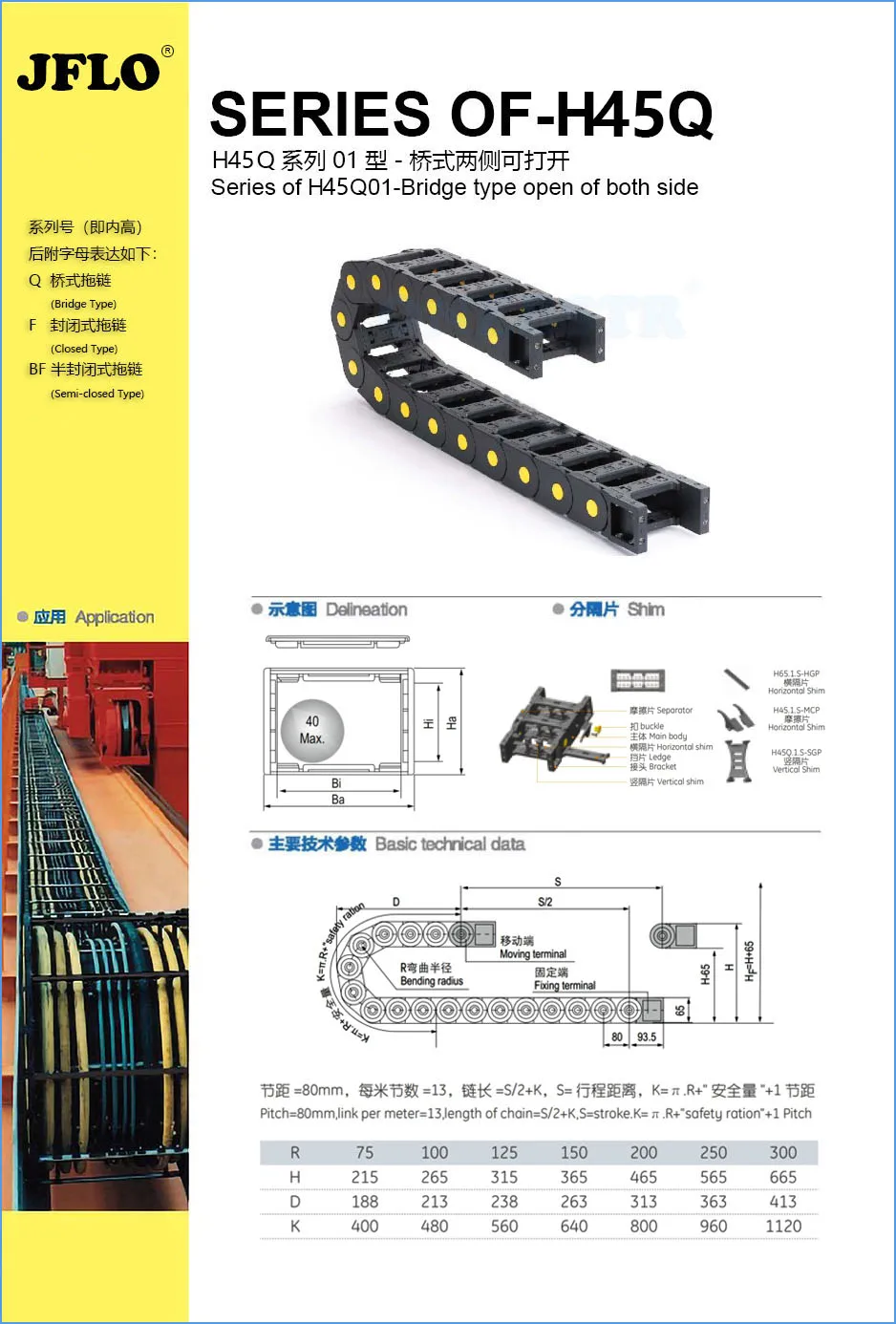

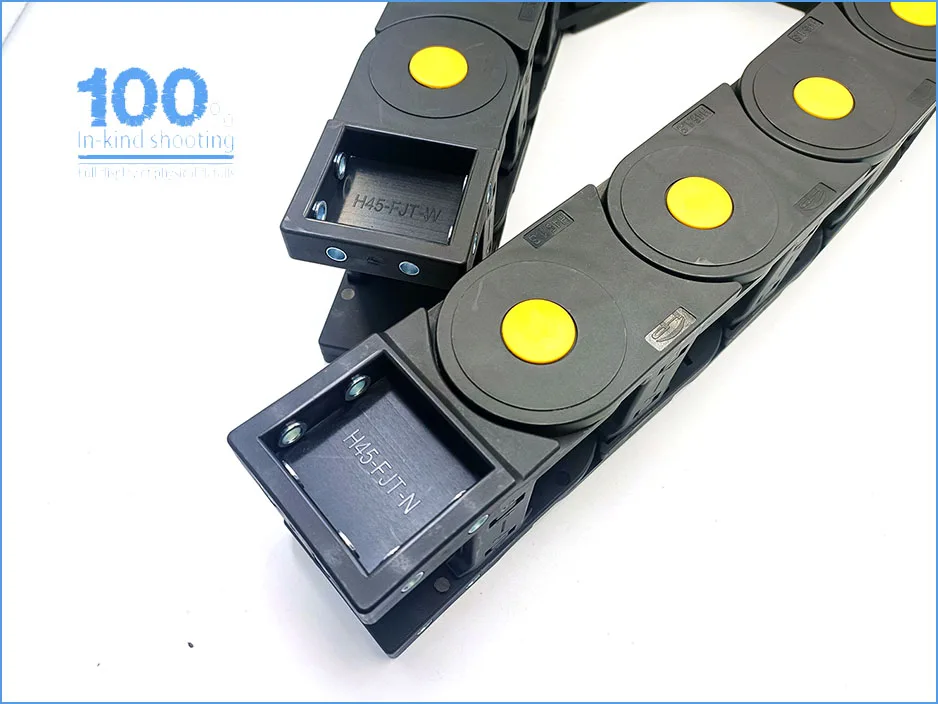

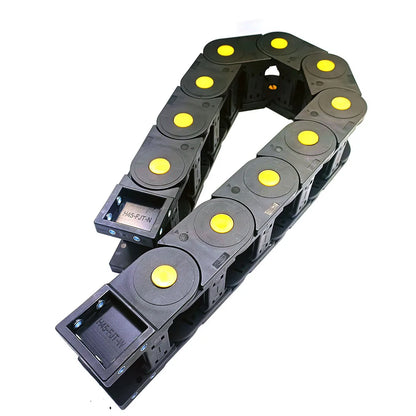

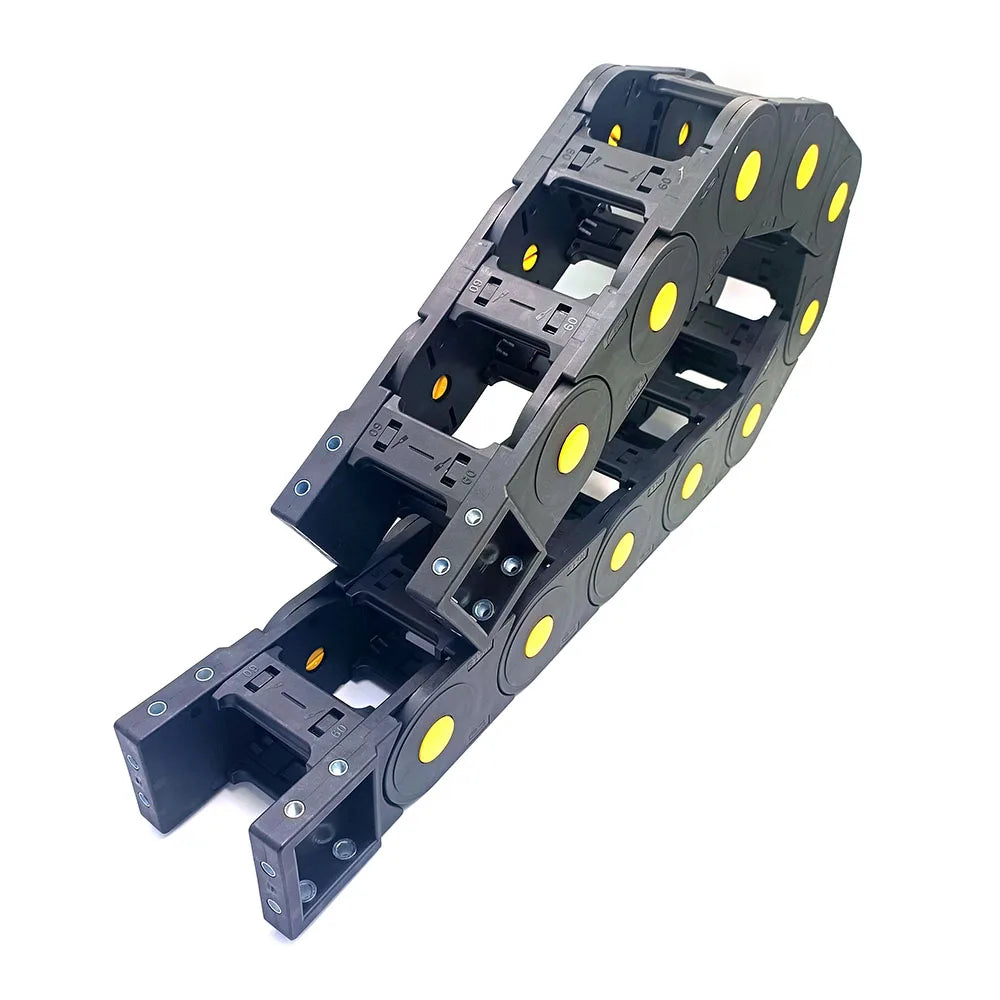

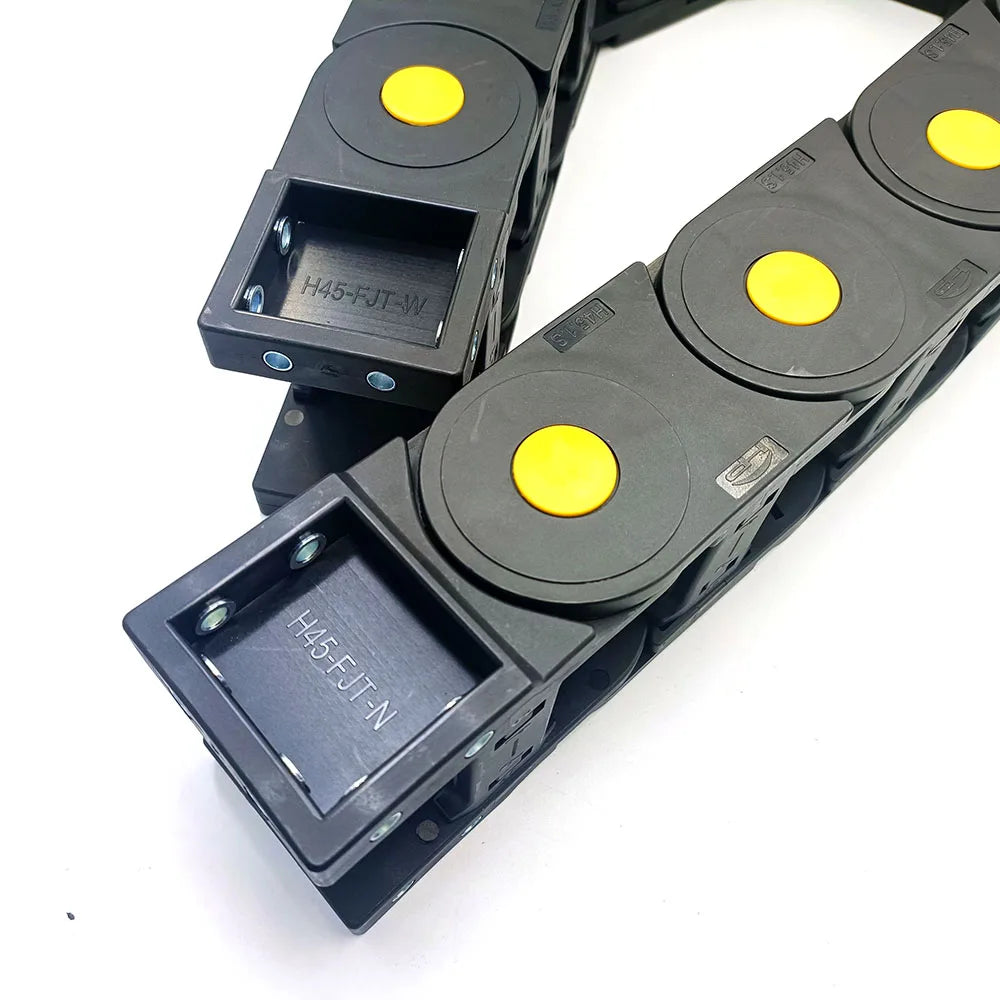

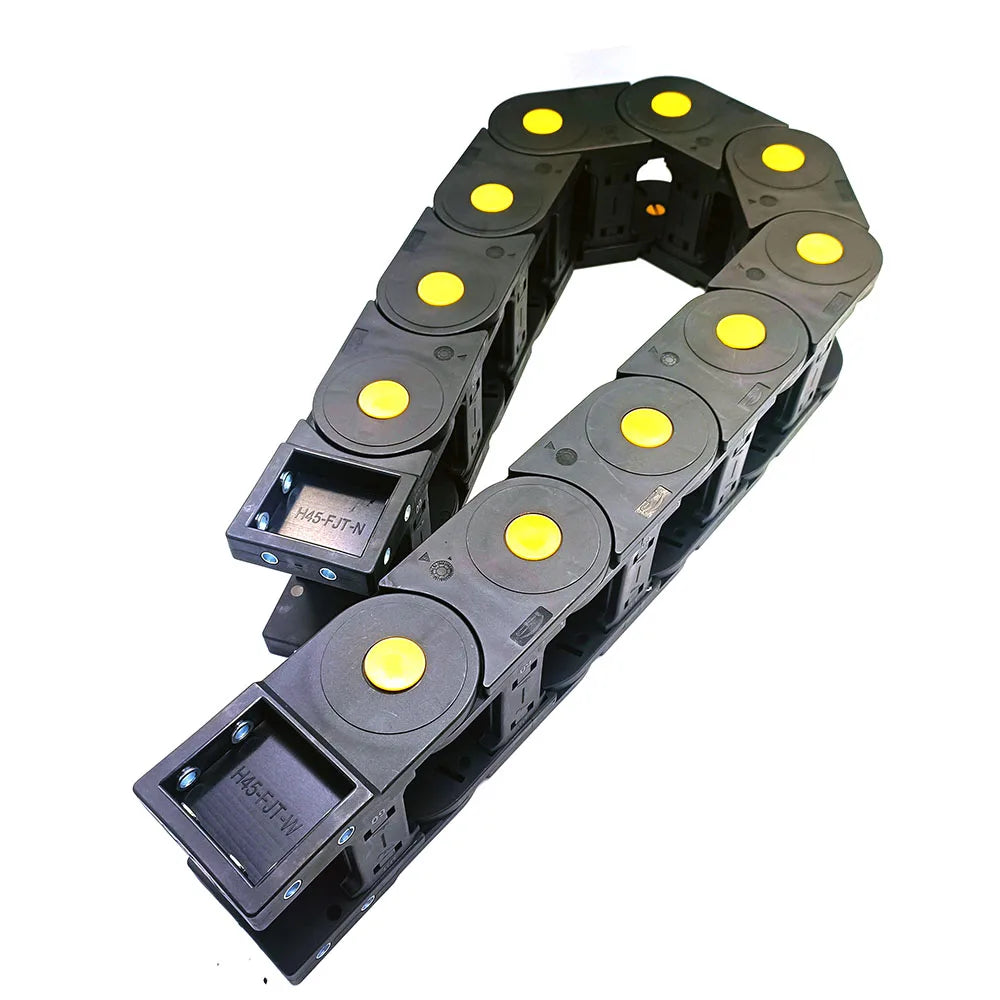

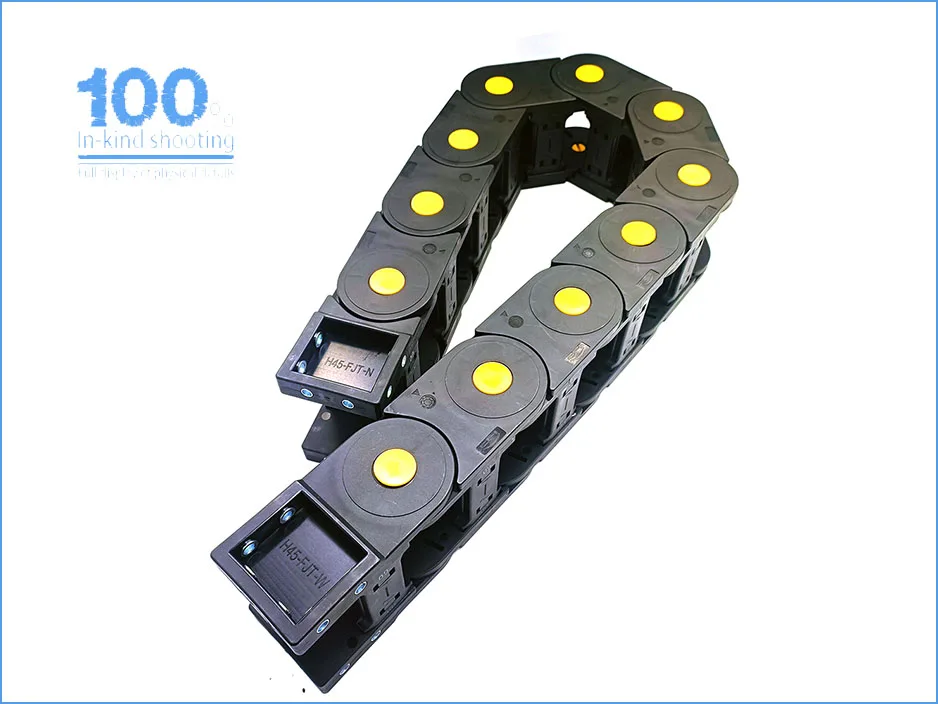

JFLO 45 Series Reinforced Plastic Drag Chain Bridge Open On Both Sides Type Engineering Nylon Towline Cable Protection Chain Drag Chain Tanks Chain

45x50 ; 45x60 ; 45x75 ; 45x90 ; 45x100 ; 45x117 ; 45x125 ; 45x130 ; 45x150 ; 45x154 ; 45x175 ; 45x200 ; 45x250 ; 45x300

Package Included:
Drag chain X1 Meter (Include the end connectors)

Uses and Features:

1) Suitable for use in a reciprocating motion of the occasion, can be built-in cable, tubing, pipe,plumbing, etc. play traction and protection.

2) Each section towline can open, easy installation and maintenance. Exercise low noise, wear-resistant, high-speed movement.

3) The towline has been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, doors and windows machinery, injection molding machines, robots, overweight transportation equipment, automated warehouses.



Plastic towline structure:

1) The towline shape like tanks chain, composed by a large number of unit links between the rotating freely link.



2) Within the same series of towline high, outside the high, the same pitch, towline in width, bend radius R may have a different choice.

3) Unit chain around the chain plate and the upper and lower cover composition, towline can open each section, easy assembly and disassembly without threading, to the cable, tubing, pipe, pipe, etc. into the towline after opening the cover.

4) Also available separators, the chain separated by space as needed.



Towline selection of main parameters:



Within high: Select built-in cable, tubing, pipe, pipe, etc. As one of the most coarse reference height,plus at least 10% of the height of the space within the towline as high. If the overlap by overlapping the actual height as the reference height.



Wide: Choose thicker some cables, tubing, pipe, water pipes, with its outer diameter and as the towline wide reference, and stay at least 10% of the width of the space.



Bending radius R: choose built-in cable, tubing, pipe, pipe, etc. The maximum bending radius as a reference value, and left more than 10 percent of the space.



Use towline length = R + 0.5R + stroke / 2



After bending towline total height = 2R + external high

Towline place principles:

Should leave 15% of the remaining space for built-in cable, tubing, etc., may move freely in the radial direction of the towline does not produce tension. Larger diameter difference between the wire should be laid separately, weight distribution, if necessary, be separated by the dividing sheet.

In the high-speed or high-frequency operation, to try to make the wires apart from each other on a level, do not make it mutually stacked more time in the cable, pipe, tubing, etc. is recommended to use separators.
