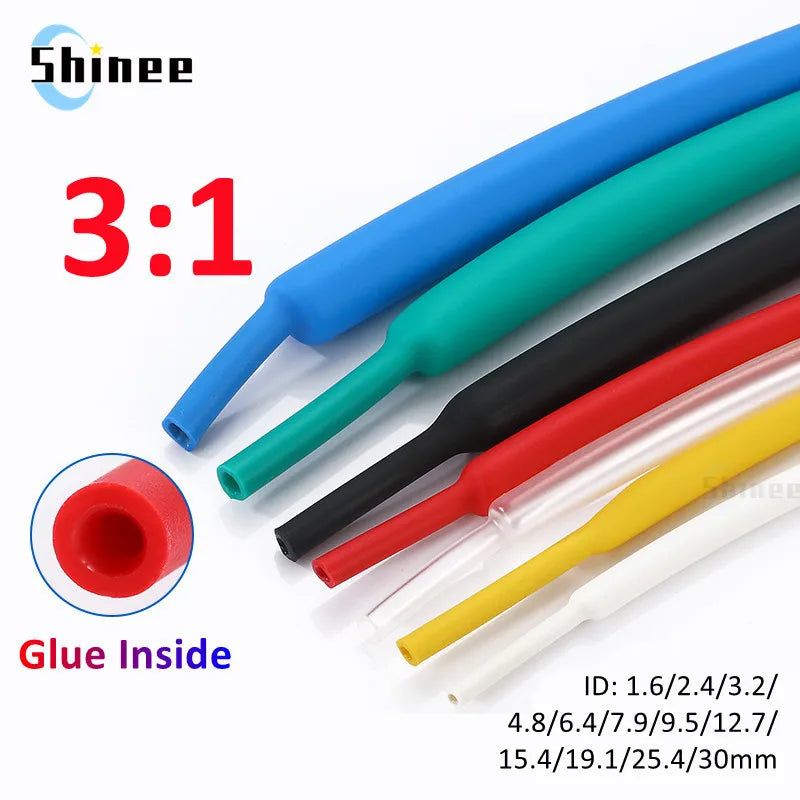

3:1 Dual Wall Heat Shrink Tube Thick Glue ratio Shrinkable Tube Adhesive Lined Wrap Wire Kit 1.6/2.4/3.2/4.8/6.4/7.9/9.5/12.7mm

Note:

Color maybe slightly different due to different monitor.

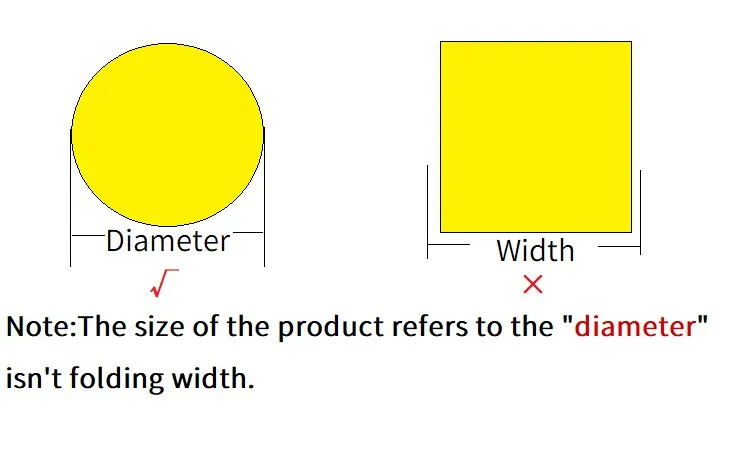

The above size is measured by hand, please allow slightly difference. Thanks !

Product:Heat Shrink Tube With Glue

HEAT ACTIVATED ADHESIVE

Features:

* Creates a waterproof seal

* Greater tensile strength

* Resistant to stretch and vibration

* Zero halogen, polyolefin cross linking

*Flame retardant

*Low smoke generation if burning

Sealed waterproof, strain buffer, outer layer self-extinguishing,

excellent flame retardanteffect (except transparent color),

comply with European rohs and other environmentarequirements.

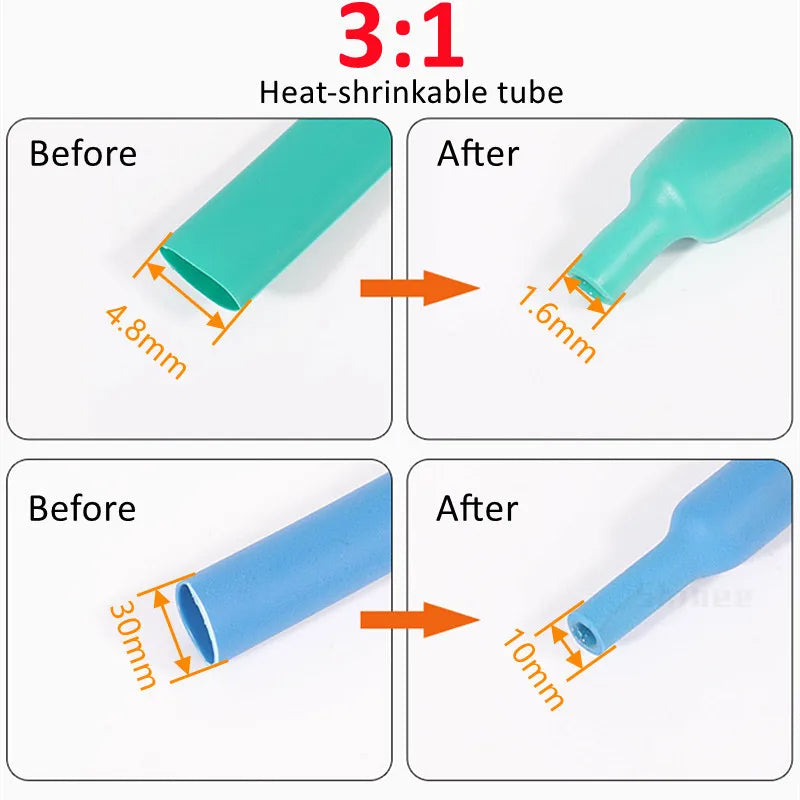

3:1 SHRINK RATIO

* Recovers to 1/3 of its original diameter

* Stays flexible

WATERPROOF

*Double wall IP68

* Connection is sealed from the elements

* Protection against wire corrosion

* Can be submerged under water

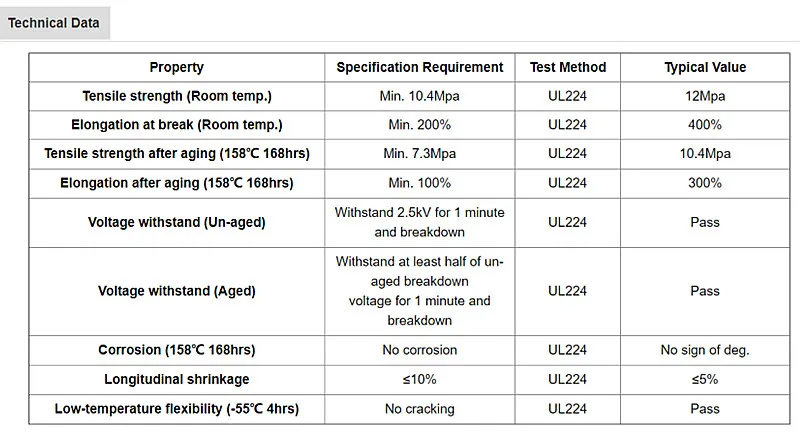

Specification:

Product Name: Heat Shrinkable Sleeve

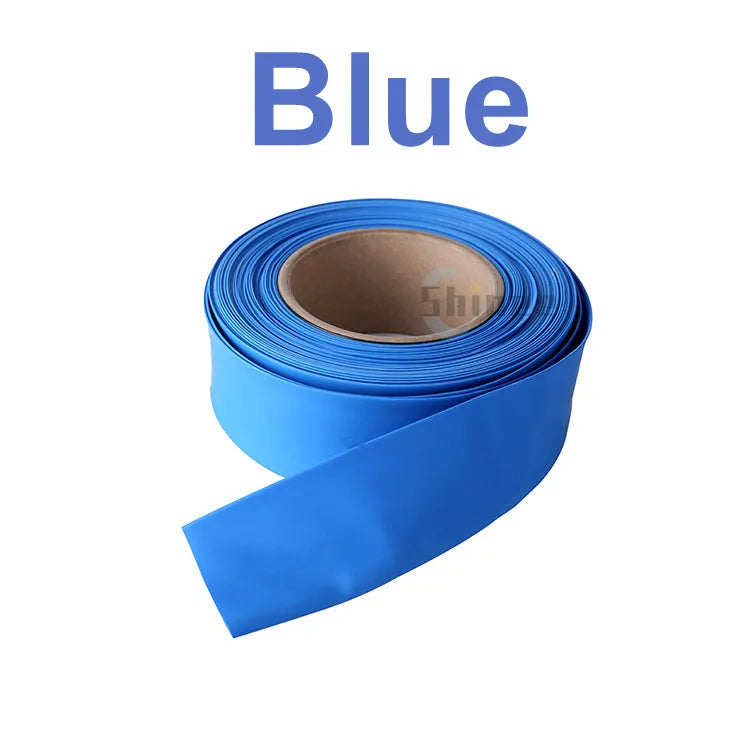

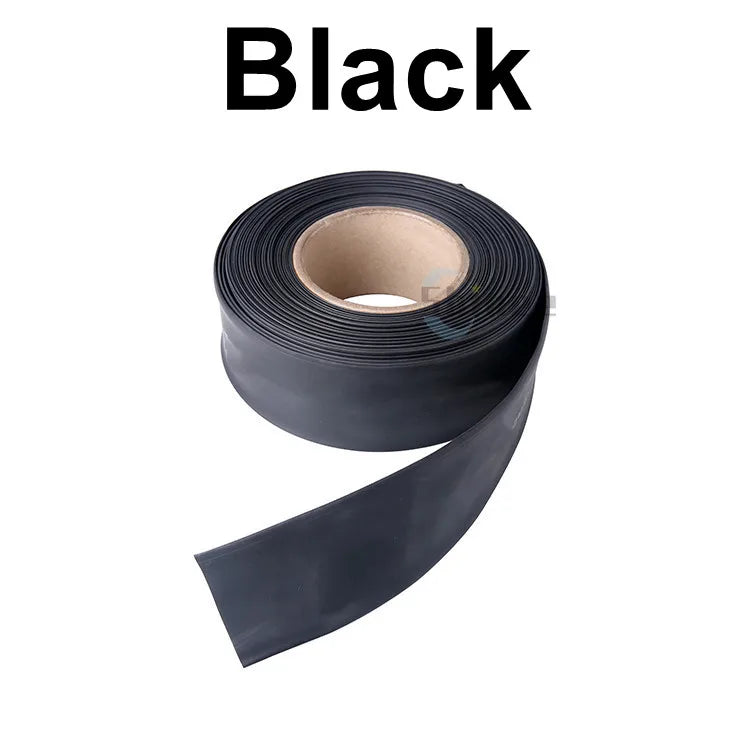

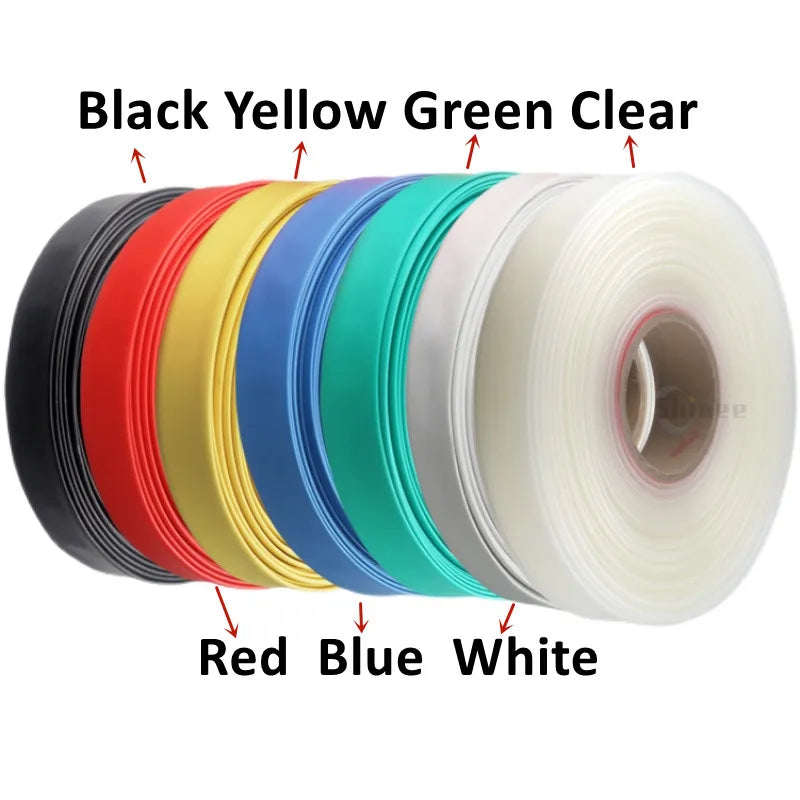

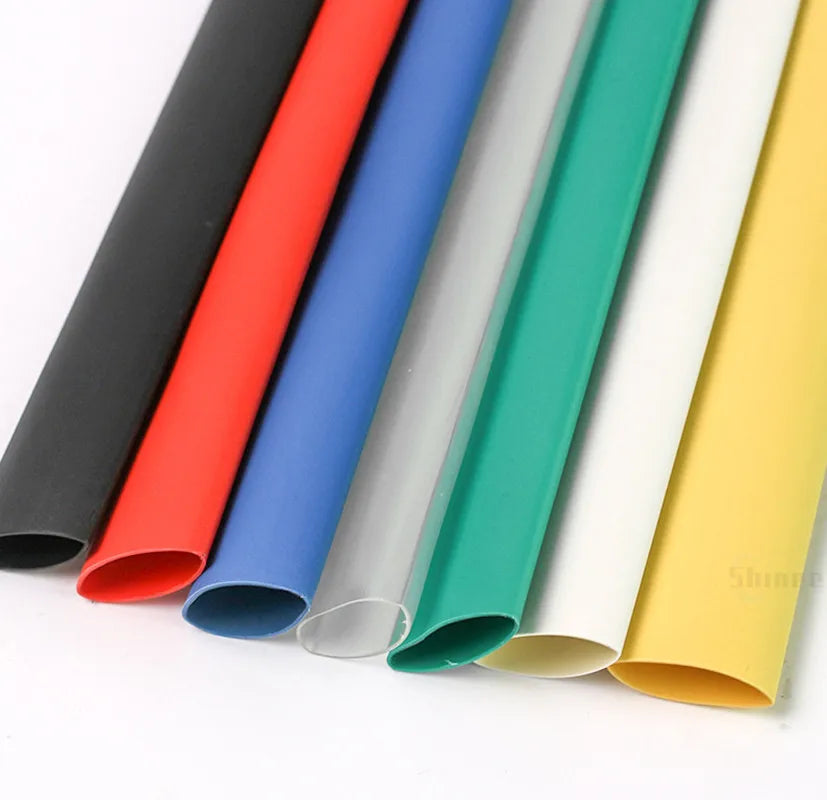

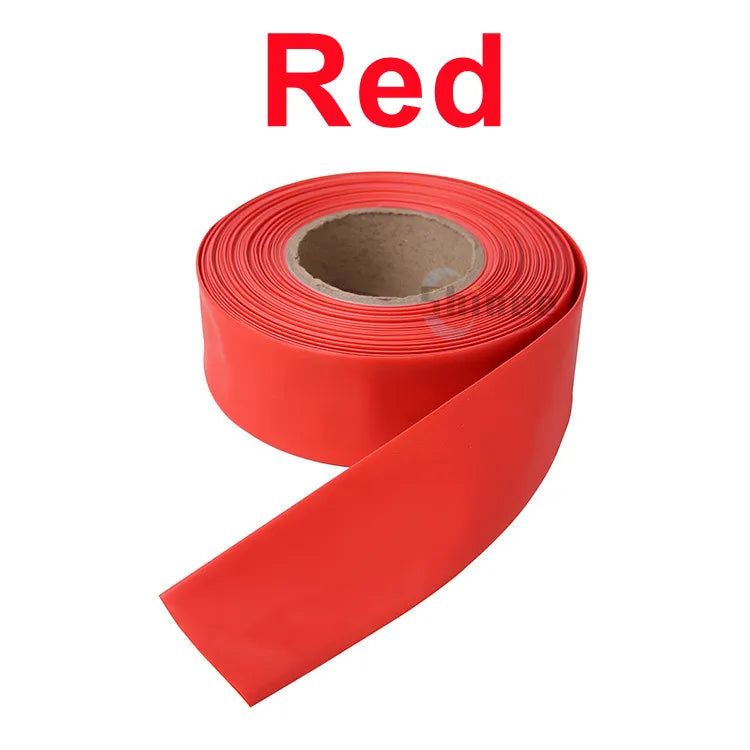

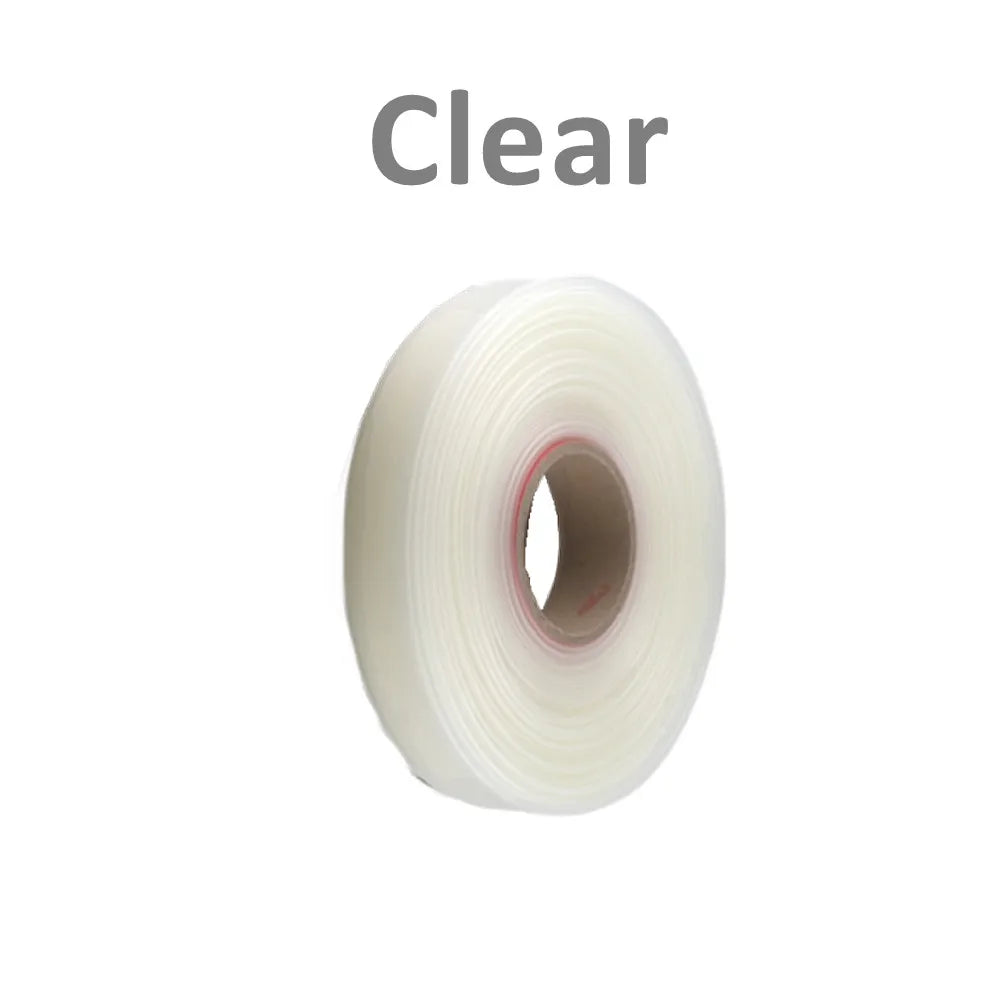

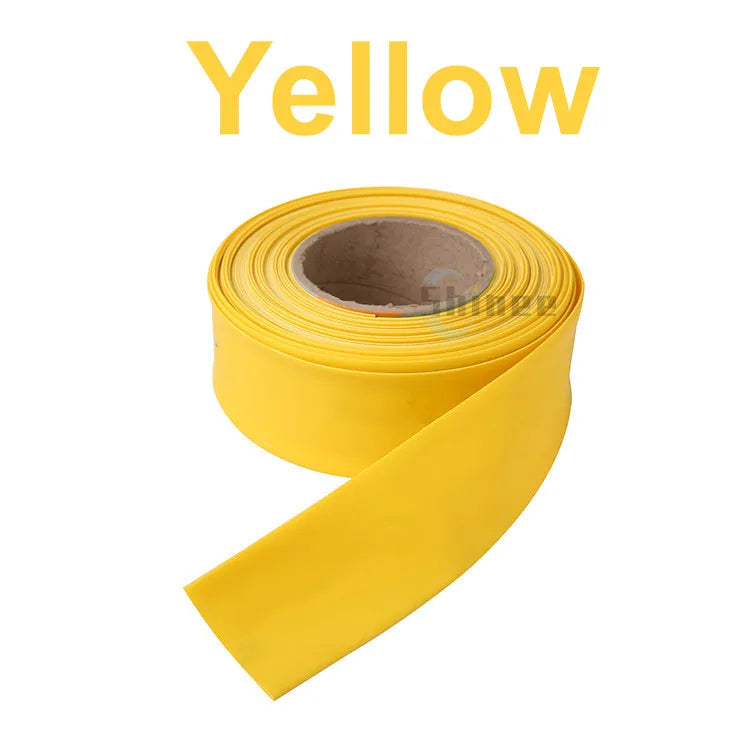

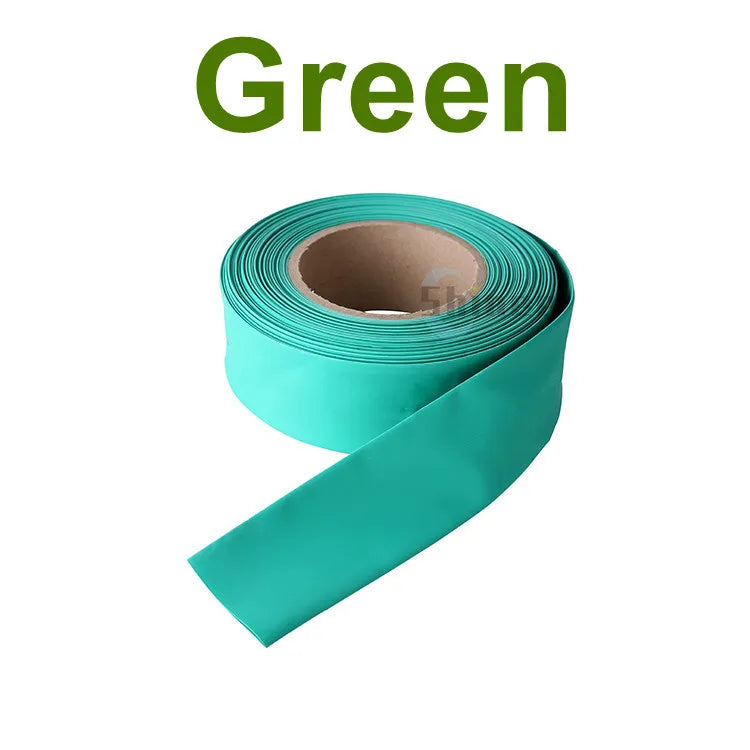

Color: Black/Red/Blue/Green/Yellow/Clear/White

Length:1/3/5/10/25/50/100meters

Heat shrink ratio: 3:1(will maximum shrink to 1/3 its supplied diameter)

Material: Polyolefin

Operation Temperation: -55℃ to +125℃

Minimum shrink temperature: 70°C

Minimum fully recovery temperature: 125°C

Cadmium content: < 5 ppm

Lead content: < 10 ppm

Full Shrinkage Temp:230℉ maximum

Tensil strength: 10.4Mpa

Dielectric strength: 15 kV/mm

Rated Voltage: 600V

Pressure: 1(KV)

Flammability : VW-1

Feature:Durable/ Flexible

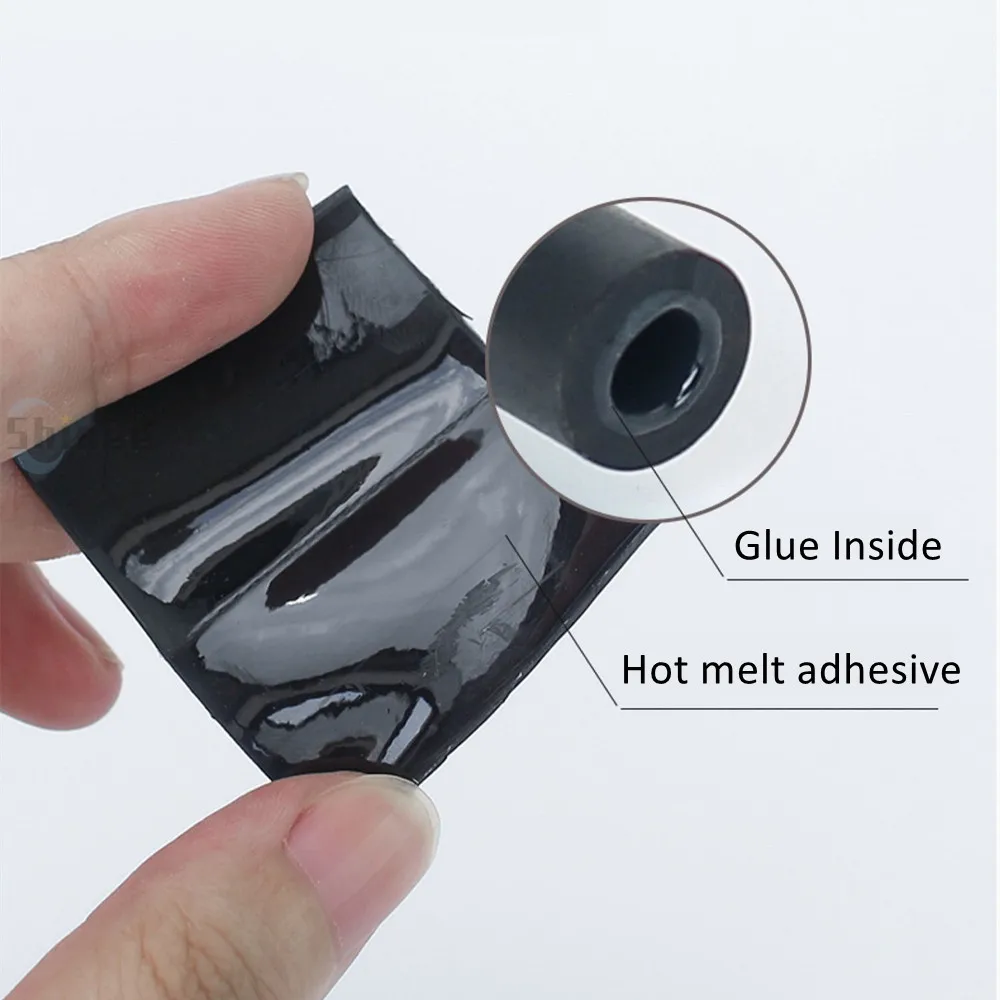

Adhesive: Hot Melt Adhesive Coated

Cutting method: Scissors or sharp knife

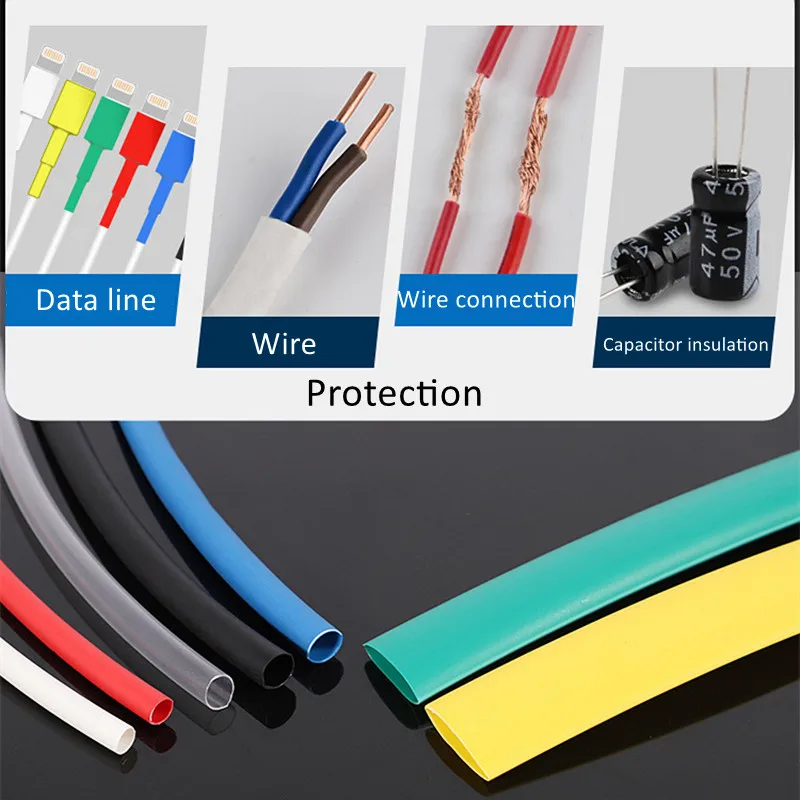

Usage: Insulating and protecting for components,interconnections,terminals,wire harness,Machine tool,machine building,electric control system etc.

Area: Electronic equipment,Household appliances,machine building,communication

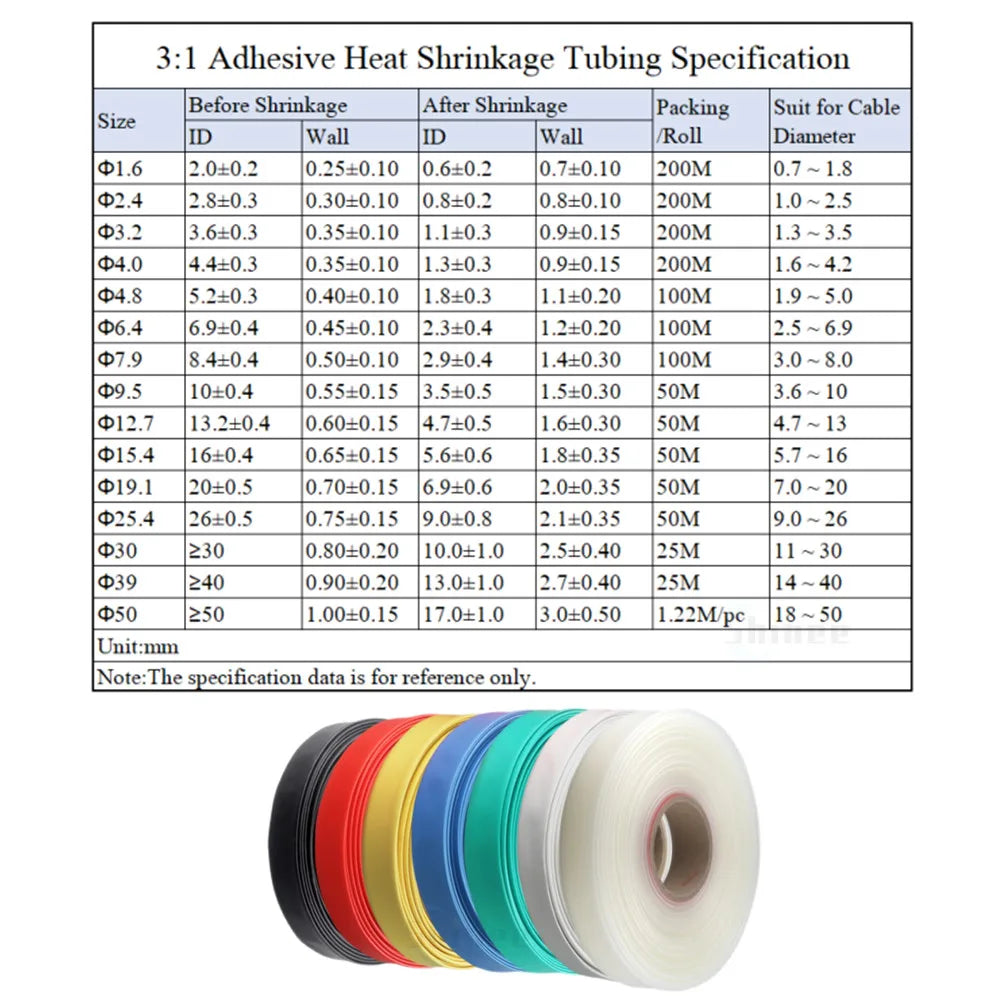

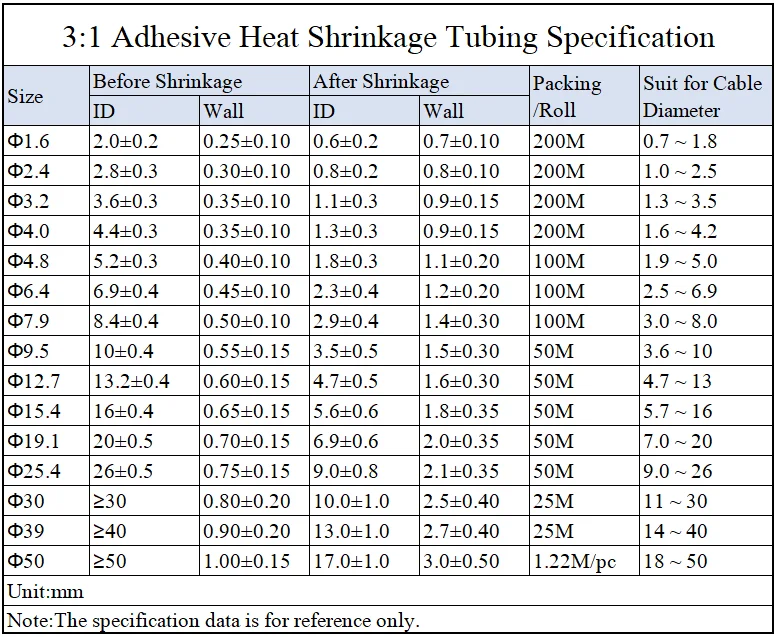

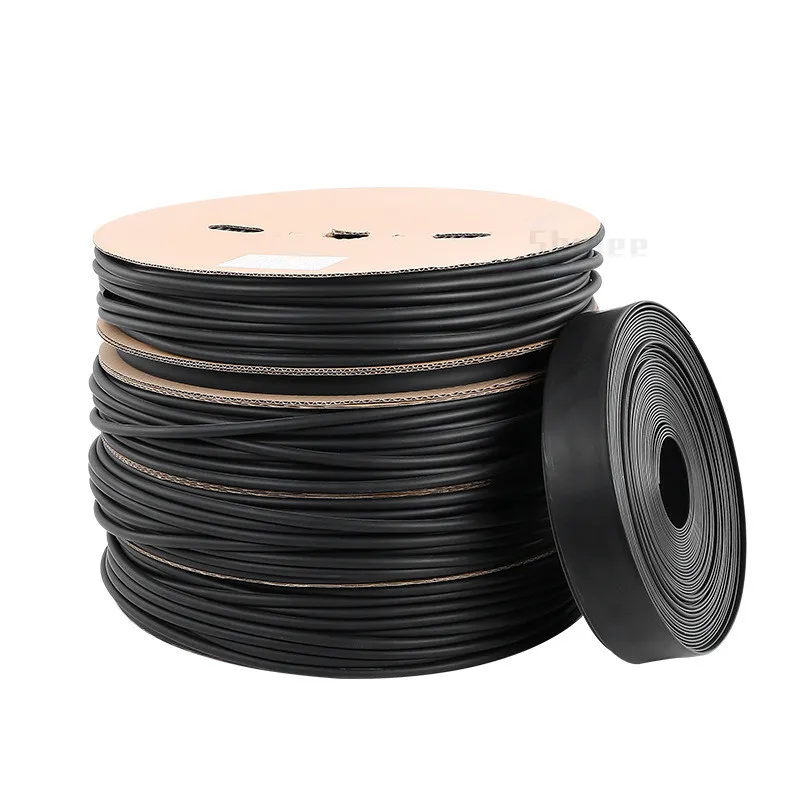

1.6mm 200meters/roll

2.4mm 200meters/roll

3.2mm 200meters/roll

4.8mm 100meters/roll

6.4mm 100meters/roll

7.9mm 100meters/roll

9.5mm 50meters/roll

12.7mm 50meters/roll

15.4mm 50meters/roll

19.1mm 50meters/roll

25.4mm 50meters/roll

30mm 25meters/roll

40mm 25meters/roll

Package:

1/5 meters Heat Shrink Tube
